Improving Packaging Line Efficiency with Box Motion Technology for Large and Irregular Products

Introduction

Packaging tall, large, or irregularly shaped items on standard high-speed wrappers often creates efficiency problems. Seal failures, product damage, and higher waste rates are common. Box motion technology addresses these issues through synchronized sealing and longer dwell time.

Soontrue offers box motion flow packaging machines designed for bakery, frozen food, medical, and industrial products that require reliable seals and stable handling.

Common Efficiency Problems with Large and Irregular Products

Seal Failures and Product Damage

Continuous-motion machines are built for speed. Their sealing jaws move in a continuous path and offer limited dwell time. When products are tall, heavy, or irregular in shape, the short sealing window can lead to incomplete seals. Products may also shift during the sealing process, causing damage or misaligned packs.

Higher Waste Rates and Slower Effective Speeds

Incomplete seals and damaged products increase reject rates. Operators may slow the line to improve results, which reduces overall output. The combination of higher waste and lower effective speed raises production costs and limits line capacity.

Impact on Overall Line Output and Cost

These problems affect more than the packaging machine itself. Downstream equipment receives inconsistent packs, and manual rework increases labor needs. Over time, the cumulative cost of waste, downtime, and quality issues becomes significant.

How Box Motion Sealing Improves Results

Synchronized Movement of the Sealing Head

Box motion technology moves the sealing jaws in a rectangular path that follows the product. The jaws close, travel with the product for a short distance, and then open. This synchronized movement keeps the product stable during sealing.

Longer Dwell Time for Stronger Seals

The extended contact time allows heat and pressure to form more complete seals. This is especially useful for thicker films or multi-layer materials that require more energy to bond properly. Stronger seals improve package integrity and reduce the risk of product exposure during storage or transport.

Reduced Product Shifting and Damage

Because the jaws move with the product, there is less chance of displacement or crushing. This gentle action helps protect the shape and appearance of large or irregular items. Lower damage rates translate directly into higher usable output.

Suitable Applications

Large Bakery Items

Loaves, cakes, and other tall bakery products often challenge continuous wrappers. Box motion machines handle these items more reliably by providing stable support and strong end seals. Soontrue box motion flow packaging machines are frequently used for such bakery applications.

Frozen Products

Frozen pizzas, ready meals, and similar items benefit from secure seals that protect against moisture and temperature changes. The longer dwell time supports consistent sealing even when film or product temperature varies slightly.

Medical Kits and Industrial Items

Medical kits and certain industrial products require package integrity and clean presentation. Box motion technology helps maintain seal quality and product condition. Soontrue machines support these sectors with hygienic stainless-steel designs and reliable performance.

Operational Benefits for Production Lines

More Stable Output and Lower Reject Rates

Consistent seals and reduced product damage lead to more predictable line performance. Plants experience fewer stoppages for quality checks or rework. Stable output improves planning and helps meet delivery schedules.

Better Compatibility with Thicker or Sustainable Films

Many sustainable films and high-barrier materials require longer sealing times. Box motion technology accommodates these films more effectively than high-speed continuous systems. This supports both product protection and sustainability goals.

Easier Handling of Mixed Product Sizes

When product sizes vary, recipe-based controls become valuable. Operators can store settings for different formats and recall them quickly. Soontrue box motion equipment includes user-friendly HMI and recipe memory functions that simplify these changeovers.

Integration and Line Optimization Tips

Matching Upstream Feeding Systems

Proper product presentation is essential for stable packaging. Upstream conveyors and feeders should deliver items at consistent spacing and orientation. Matching the feeding system to the characteristics of large or irregular products improves machine performance.

Combining with Downstream Equipment

Box motion wrappers can connect with labelers, checkweighers, and cartoning systems. Smooth integration reduces manual handling and keeps the entire line running efficiently.

How Soontrue Supports Complete Line Solutions

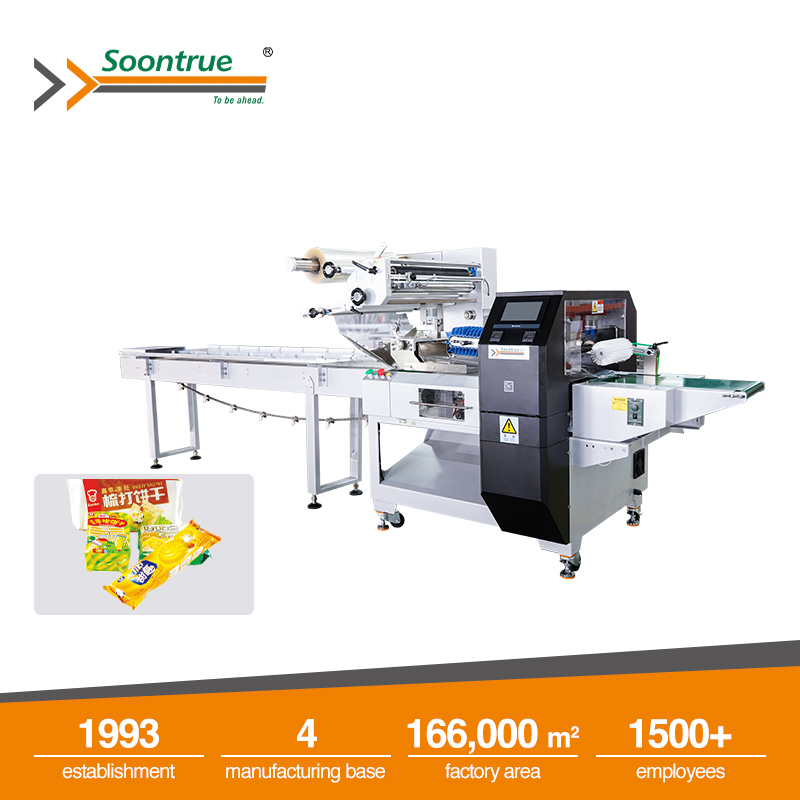

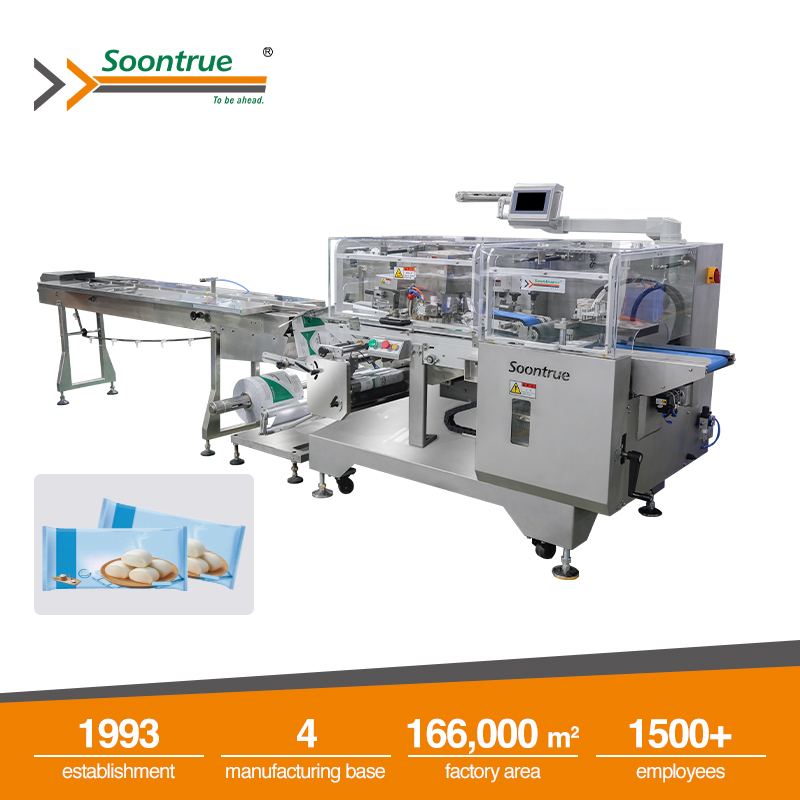

Soontrue designs its box motion flow packaging machines for seamless connection with other packaging equipment. This allows plants to build complete lines that handle feeding, wrapping, and secondary packaging in a coordinated way. Exploring the full range on the Soontrue  helps identify suitable combinations.

Conclusion

Box motion technology offers a practical way to raise packaging line efficiency for large and irregular products. It improves seal strength, reduces damage, and supports more stable output.

Review Soontrue’s box motion flow packaging machines on the box motion flow packaging machine category page. For specific application advice, contact the team through the Contact Us page or learn more about the company on the About Us page.

FAQs

Q: Why do large or irregular products cause problems on continuous wrappers?
A: Continuous wrappers have short sealing times and limited product control. Tall or irregular items can shift or receive incomplete seals, leading to higher waste and slower effective speeds.

Q: How does box motion technology reduce product damage?
A: The sealing jaws move with the product during the sealing cycle. This synchronized action keeps the product stable and reduces the risk of crushing or displacement.

Q: Can box motion machines handle thicker or sustainable films?
A: Yes. The longer dwell time allows better heat transfer, which improves sealing results on thicker and multi-layer films often used for sustainable packaging.

Q: Are Soontrue box motion machines suitable for bakery and frozen products?
A: Yes. Soontrue box motion flow packaging machines are commonly used for large bakery items, frozen pizzas, ready meals, and similar products that require strong seals and careful handling.

Q: How does recipe memory improve efficiency?
A: Operators can save settings for different product sizes and film types. Recalling these recipes shortens changeover time and helps maintain consistent results across shifts.

Q: Can these machines be integrated into a complete packaging line?
A: Yes. Soontrue designs its box motion machines for connection with upstream feeding systems and downstream equipment such as labelers and cartoners.
