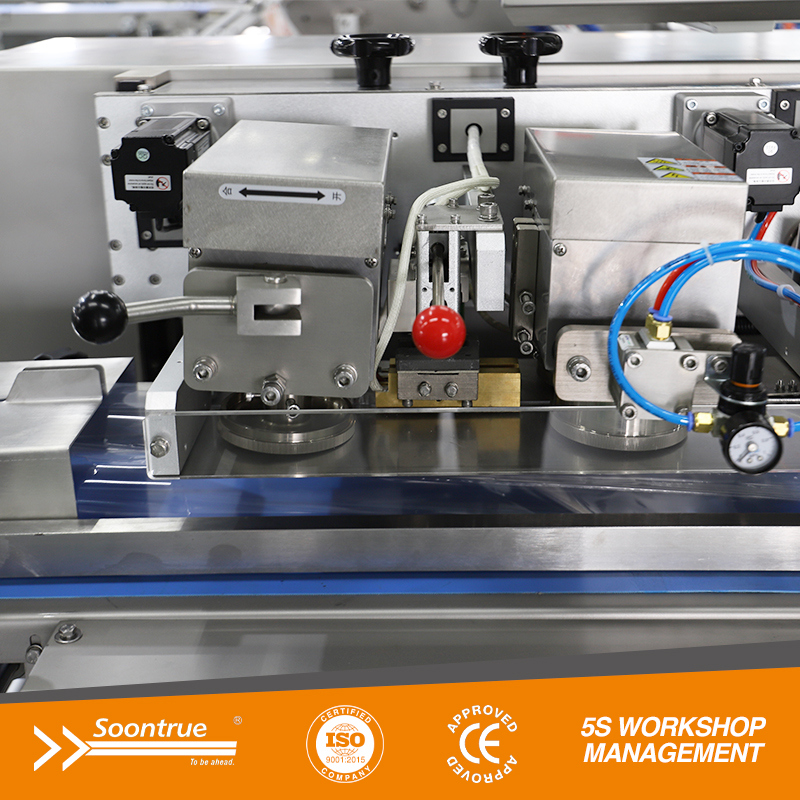

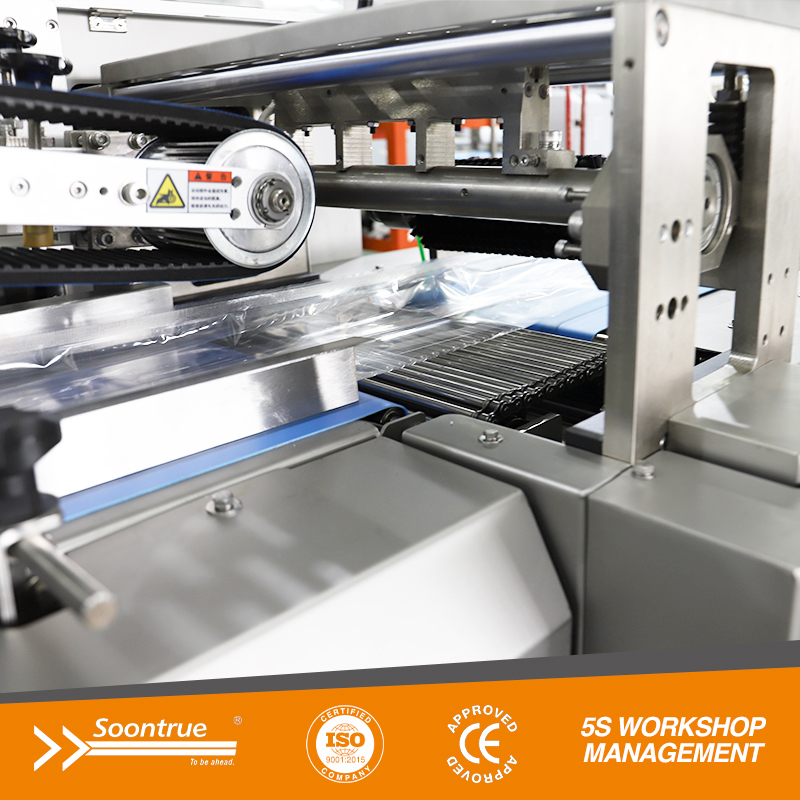

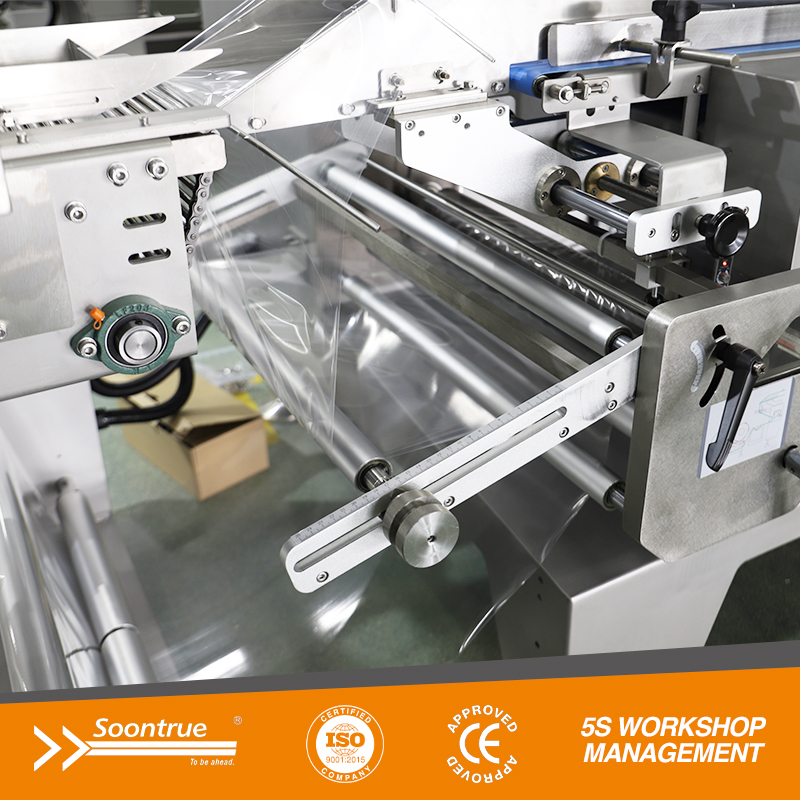

Big Pillow Bag Flow Wrapping Machine - SZ601
Application:
Mainly used for packing various kinds of irregular,sticky or bulky products, such as egg roll, sausage,squid, bread, instant noodles, preserved fruit, jellycandy, toilet soap, pocket notebook, stick tape,medicine, and so on.
automatic wrapping machine
Introduction:
2. Multi-axis full servo-control, simple operation and stable function. High control accuracy and less power dissipation.
3. Color touch screen display makes adjustment convenient, which has the function of self-diagnosis and data storage. The change of product size can be easily carried out.
4.Applied with the system of high accuracy and high sensitivity color mark tracking, it controls the bag length accurately.
5. Available with the function of detecting wrong bag position and material anti-cutting.
6. Intelligent and digital display temperature controller, which is easily set for accurate individual temperature controls, suitable for various packing materials.
7. Automatic stop function without product can avoid wasting packing film.
8. Fully automatic material-feeding function saves manpower.
9. The stopping position can be randomly adjusted and easily operated.
10. Optional seal patterns such as straight line, vertical line or net line is available.
11. All-purpose bag former can be randomly adjusted and easily operated.
12. Various cutting types are available for option.
13. The date-printing position can be adjusted randomly.
14. The whole machine is applied with multiple safety protection devices.
15. It can be equipped with some kinds of automatic material feeding devices. And it has a strong extensible function.
2. Robust machine construction
3. Stainless steel body frame
4. Color mark tracking
5. Machine can easily be integrated with Soontrue’s full line of automatic feeding system and other upstream or downstream equipment
Maintenance and inspection
(1) Clean the machine each time after packaging.
(2) Turn off the power before cleaning the machine to low the temperature of heating part.
(3) Never spray the water or steam directly on the machine when cleaning.
(4) Main components to be cleaned:
b.Brush off the film chips adhered to the sealing surface by the wire brush applied with the silicone oil.
c.Clear the dirt on the control panel, safety cover and operating surface by a piece of soft cloth.
dConductive ring of the mid sealing tool and end sealers: clean it once a week or two weeks. Clean the conductive ring by the back of the sandpaper with the master power off.
(1) Apply the lubricating grease on the bearing of the end sealers.
(2) Apply the lubricating grease on the gear and chain (pulley) of the driving unit.
(3) Check the tightness of the chain and belt of the driving unit, and tighten the loosed one.
(4) Check the tightness of the fastening screw or nut of all parts, and tighten the loosed one.
3.Relevant inspection for machine once a half year.
(1) Check the wear intensity of the belt of the driving unit, and replace the worn-out one.
(2) Check the wear intensity of the rubber roller, and replace the one affecting the film advancing effect.
(3) Properly adjust the brake unit of the film-carrying roller.
(4) Check all wearing parts, and immediately replace the damaged one.
(5) Check the fastness of the wiring on the electrical terminal plate, and tighten the loosed one. Check the inverter, programmable controller and circuit board, and remove the dust or dirt on them by the compressed air.
4.Maintenance and clean for machine every day or every shift.
(1) Clean the machine each time after packaging.
(2) Turn off the power before cleaning the machine to low the temperature of heating part.
(3) Never spray the water or steam directly on the machine when cleaning.
(4) Main components to be cleaned:
b.Brush off the film chips adhered to the sealing surface by the wire brush applied with the silicone oil.
c.Clear the dirt on the control panel, safety cover and operating surface by a piece of soft cloth.
d.Conductive ring of the mid sealing tool and end sealers: clean it once a week or two weeks. Clean the conductive ring by the back of the sandpaper with the master power off.
5.Maintenance and clean for machine every month.
(1) Apply the lubricating grease on the bearing of the end sealers.
(2) Apply the lubricating grease on the gear and chain (pulley) of the driving unit.
(3) Check the tightness of the chain and belt of the driving unit, and tighten the loosed one.
(4) Check the tightness of the fastening screw or nut of all parts, and tighten the loosed one.
6.Relevant inspection for machine once a half year.
(1) Check the wear intensity of the belt of the driving unit, and replace the worn-out one.
(2) Check the wear intensity of the rubber roller, and replace the one affecting the film advancing effect.
(3) Properly adjust the brake unit of the film-carrying roller.
(4) Check all wearing parts, and immediately replace the damaged one.
(5) Check the fastness of the wiring on the electrical terminal plate, and tighten the loosed one. Check the inverter, programmable controller and circuit board, and remove the dust or dirt on them by the compressed air.
FAQ
Q1: What type of machine for horizontal packaging do you have
Answer: We will recommend suitable models based on your product characteristics, size, and type of placement, such as model with top film loader, bottom film loader, rotary end sealing, box motion end sealing, etc. In addition, different types of in-feed conveyors can also meet different types of products feeding methods, such as chain type, belt type, feeding-on-film type, etc
Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our machine for packaging is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. If you have different products or packages that need to be changed, we can provide instructional videos to give you step-by-step tutorial. Also, the HMI has memory function, which is convenient for you to reload the settings in the future.
Q3: If I buy your automatic packaging machine, what technical support can I get?
Answer: Whether buying a customized packaging machine or an automatic packaging system, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some custom-made automatic packing system, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).
Q4: How do we build trust in the first business?

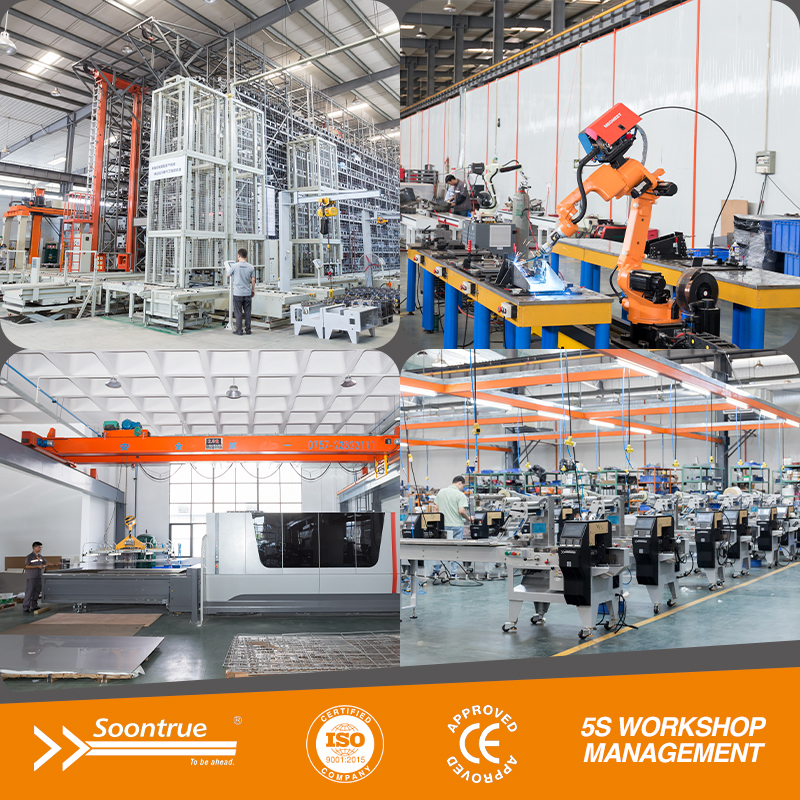

Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the high quality packaging machine you need is ready before shipment.
Q5: How can I find the custom packaging machine I need?
Answer: We will fully communicate of the information of your products, packaging scheme, and feeding method. We have nearly 30 years of experience as an packaging machine factory and can provide you with similar case videos for your reference. If necessary, we will ask you for samples of products and packaging films for testing, in order to find the most suitable and cost-effective solution for you.
| Model | SZ601 |
| Center distance | 150mm |
| Bagging size range | L120-600mm Max. W250mm Max. H80mm |
| Packing speed | 35-130 bags/min. |
| Packing film width | Max. 600mm |
| Packing material | OPP, OPP/CPP, PT/PE, KOP/CPP, PVDC/PVC etc. |
| General power | 6.8 kw |
| Power supply type | 1Ph. 220V 50Hz |
| Machine weight | 1000Kg |
| Machine dimensions | 5230 x 1380 x 1460mm |
