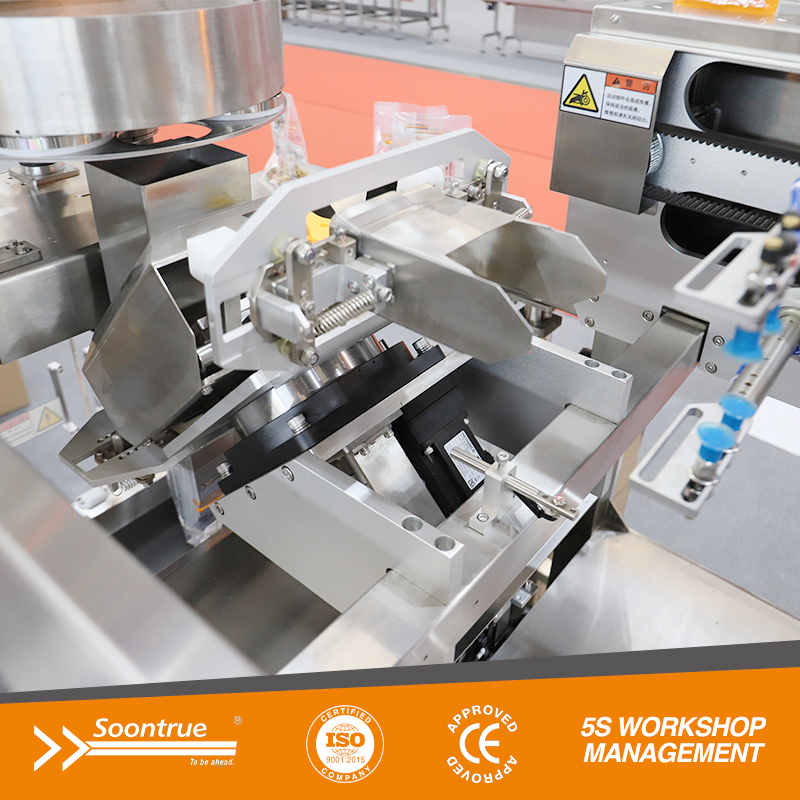

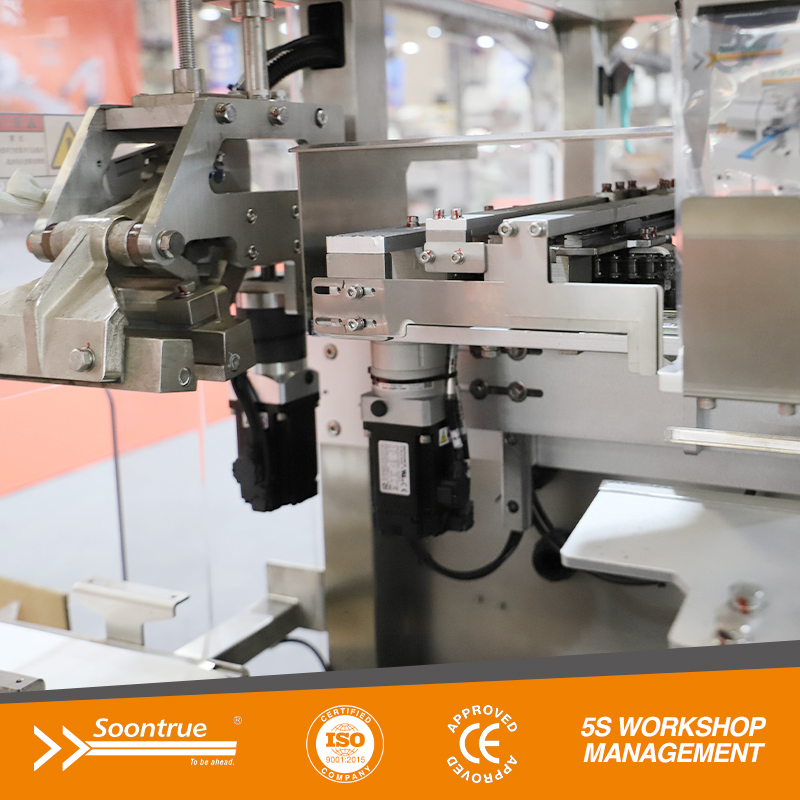

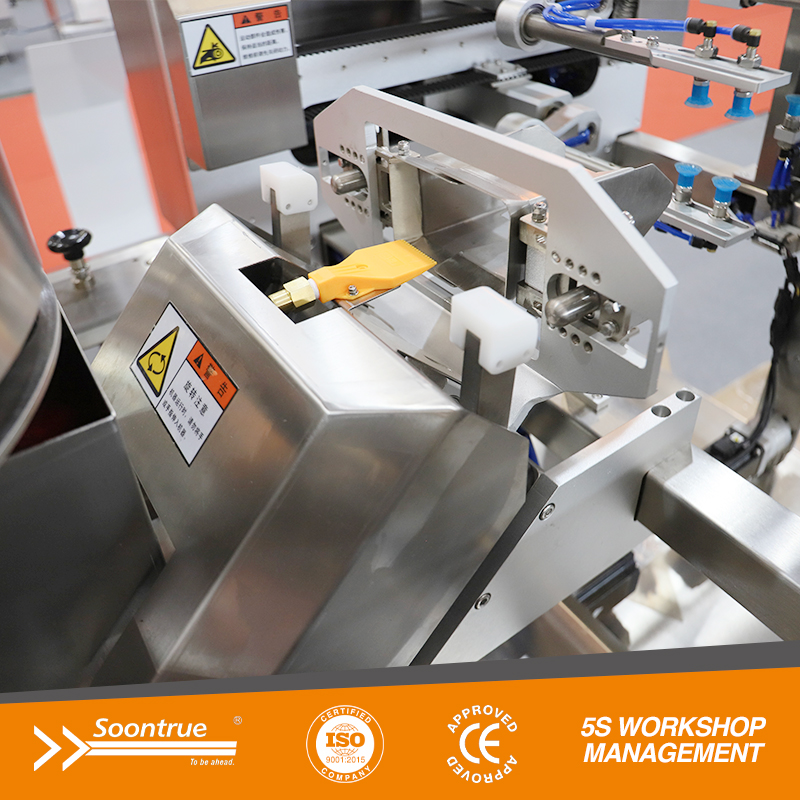

TD-200L Vertical Premade Pouch Packing Machine
Application：
Mainly used for packing various regular and solid products such as cake, bread, toast and so on, with premade pouch, normally for primary package.
Introduction
Parameter
TD-200L Vertical Premade Pouch Packing Machine
Main features:
●Controled by PLC (based on the EtherCAT bus) and user friendly HMI, offering simple and convenient operation.●Fully servo-driven, the feeding pusher achieves precise positioning.

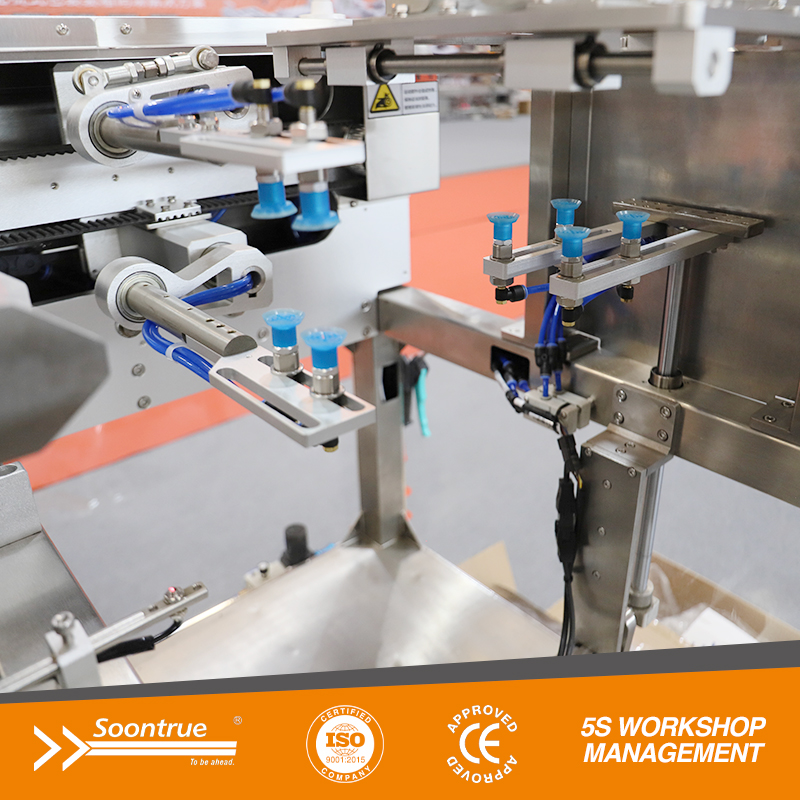

●With a 4-station rotary structure, premade pouch picking, opening, loading, and product pushing automatically.
●Servo-controlled pouch gusseting and pressing ensure nice and secure sealing.
●Equipped with detecting sensor, preventing product feeding in case pouch opening failure, stable and reliable.
Technical Parameters:
| Model | TD-200L |
|---|---|
| Packing speed | 10 - 40 ppm |
| Pouch length | 150 - 250 mm |
| Pouch width | 50 - 150 mm |
| Pouch height | 40 - 100 mm |
| Rated power | 8kW |
| Air source | 6 kg/cm2, 600 l/m |
| Machine weight | 650 kg |
| Machine size | 1420 x 988 x 1500 mm |
| Power supply | 220v / 1ph / 50Hz |
| Package material | OPP/CPP, PT/PE, aluminum film, KOP/CPP aluminum laminated film |
