TD-300A Horizontal Premade Pouch Packing Machine
Application：
Mainly used for packing various regular and solid products such as cake, bread, toast and so on, with premade pouch. Applicable for both primary or secondary package.
Introduction
Parameter
TD-300A Horizontal Premade Pouch Packing Machine
Application:
Horizental mini doypack packing machine for high speed running to ready premade ziplock standup pouch for food, bread. etc.
Pouch Type: Flat Bottomed Pouch, Stand Up Pouch, Quad Seal Bag, Flat Pouch - 3, Side Seal Bag, Shaped Pouch, Retort Pouch, Kraft Paper Bags etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
.jpg)
.jpg)
Main features:
●Controled by PLC (based on the EtherCAT bus) and user friendly HMI, offering simple and convenient operation.
●Fully servo-driven, the feeding pusher achieves precise positioning.

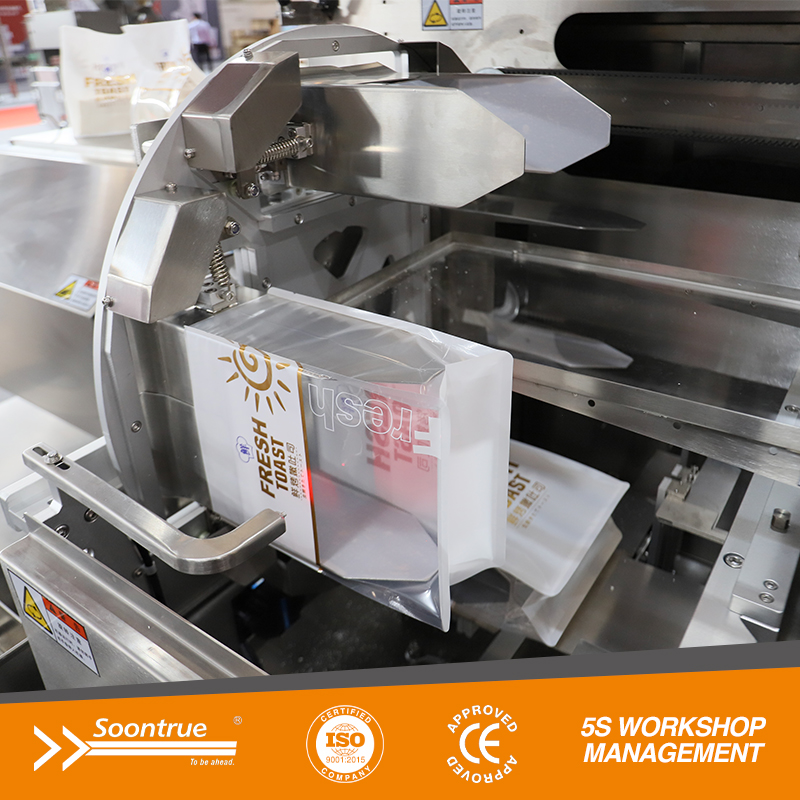

●With a 4-station rotary structure, premade pouch picking, opening, loading, and product pushing automatically.
●Servo-controlled pouch gusseting and pressing ensure nice and secure sealing.
●Equipped with detecting sensor, preventing product feeding in case pouch opening failure, stable and reliable.
Technical Parameters:
| Model | TD-200A | TD-300A |
|---|---|---|
| Open-pouch packing speed | Max. 60 pouches/min | Max.35pouches/min |
| Sealed-pouch packing speed | Max. 45 pouches/min | 25 - 30 pouches/min |
| Pouch length | 150 - 300 mm | 250 - 350 mm |
| Pouch width | 70 - 150 mm | 100 - 220 mm |
| Pouch height | 40 - 90 mm | 40 - 110 mm |
| Rated power | 8Kw | 8Kw |
| Air source | 6 kg/cm2, 600 l/m | |
| Machine weight | 500 kg | 600 Kg |
| Machine size | 2000 x 970 x 1310 mm | 2450 x 1100 x 1500 mm |
| Power supply | 220v / 1ph / 50Hz | |
| Package material | OPP/CPP, PT/PE, aluminum film, KOP/CPP aluminum laminated film | |
